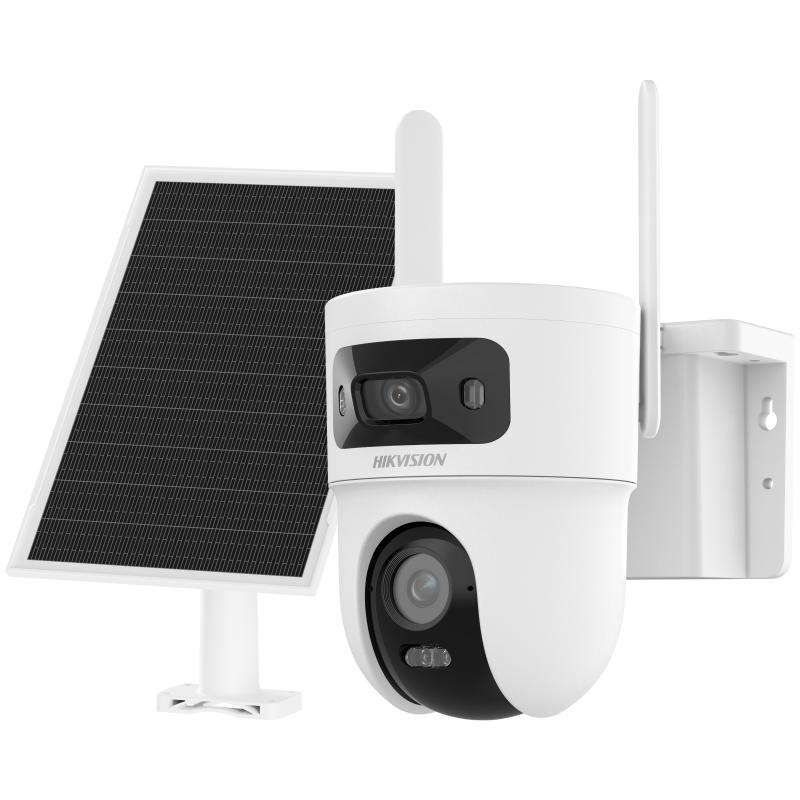

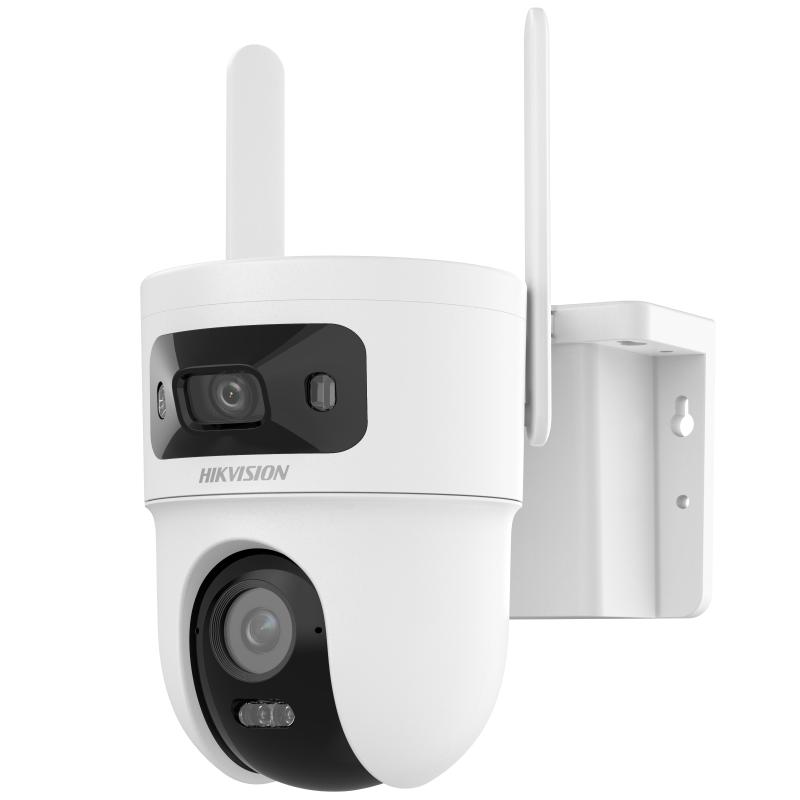

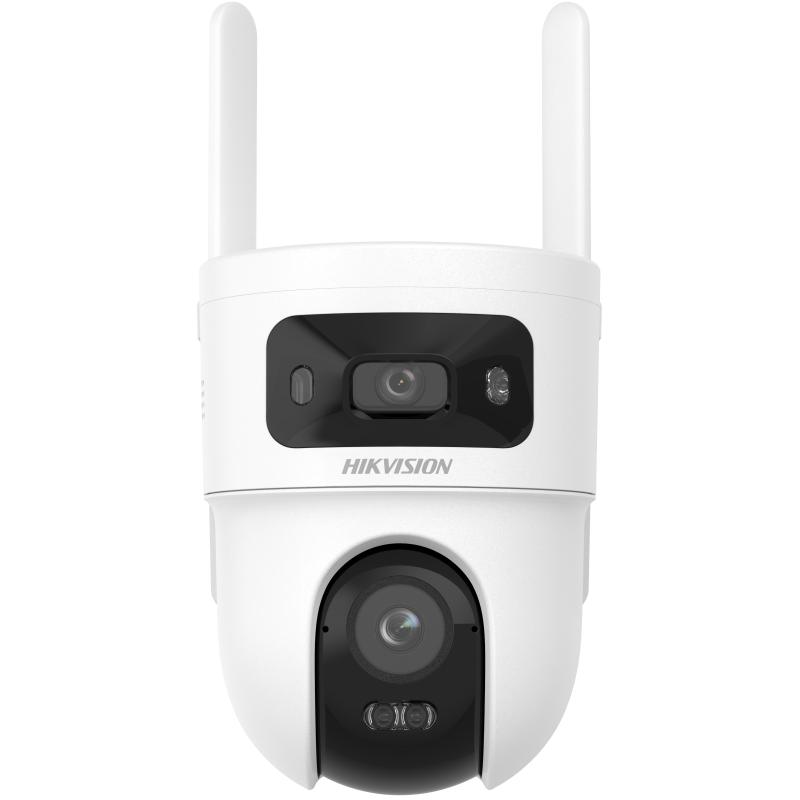

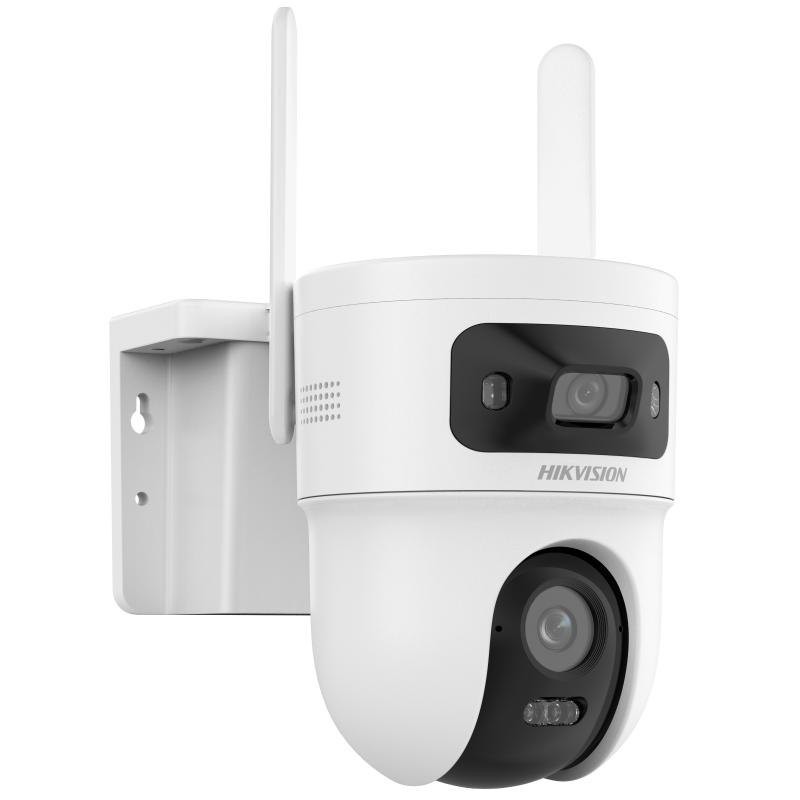

Cámara PT de doble lente de 4+4MP con energía solar, 4G y funcionamiento continuo las 24 horas

Modo AOV: Grabación de video 24/7
Panel solar de 8 W y batería de 9000 mAh
Transmisión de datos 4G LTE
Luz híbrida inteligente: Luz blanca e infrarroja de 30 m
Micrófono y altavoz integrados, audio bidireccional
Seguimiento inteligente: La cámara PT realiza el seguimiento de personas con Detección de movimiento 2.0
Detalles panorámicos: Lente gran angular para información de fondo, lente específica para detalles de primer plano
Detección de movimiento 2.0: Detección de personas y vehículos
Smart-tracking
Two-Way-Audio

4G-Signal
Panoramic-Details
Smart-Hybrid-Light
IP66
Human-Vehicle-Classification

Camera
Image Sensor1/3″ Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON)
Shutter Time1 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: -170° to 170°,tilt: 0° to 80°

Lens
Focal Length & FOV
2.8 mm, horizontal FOV 98.2°, vertical FOV 54.2°, diagonal FOV 114.6°
4 mm, horizontal FOV 78.8°, vertical FOV 42.3°, diagonal FOV 93.4°
Lens Type
Fixed focal lens
Bullet channel: 2.8 mm
PT channel: 4 mm
ApertureF1.6
Lens MountM12
Iris TypeFixed

DORI
DORI
Bullet channel: 2.8 mm D: 61 m, O: 24 m, R: 12 m, I: 6 m
PT channel: 4 mm D: 82 m, O: 32 m, R: 16 m, I: 8 m

Illuminator
Supplement Light TypeIR,White Light
Supplement Light RangeUp to 30 m
IR Wavelength850 nm
Smart Supplement LightYes

Video
Main Stream
Bullet channel 1:
50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
PT channel 2:
50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream
Bullet channel 1:
50 Hz: 12.5 fps (768 × 432)
60 Hz: 15 fps (768 × 432)
PT channel 2:
50 Hz: 12.5 fps (768 × 432)
60 Hz: 15 fps (768 × 432)
Video Compression
Main stream: H.265,
Sub-stream: H.265
Video Bit Rate32 Kbps to 8 Mbps
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR

Audio
Audio CompressionG.711ulaw
Audio Bit Rate64 Kbps(G.711ulaw)
Audio Sampling Rate8 kHz
Environment Noise FilteringYes

Network
Simultaneous Live ViewUp to 6 channels
APISDK
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
ClientHik-Connect

Mobile Communication
StandardLTE-FDD
Frequency
EU:LTE-FDD: B1/3/5/7/8/20/28
LA:LTE-FDD: B2/3/4/5/7/8/28/66
Uplink and Downlink Data RateCat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps
SIM Card TypeNano SIM

Image Settingsbrightness,contrast,white balance,saturation,sharpness
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Wide Dynamic Range (WDR)Digital WDR

Interface
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in MicrophoneYes,1 built-in microphone
Reset KeyYes
Built-in SpeakerYes, 1 built-in speaker

Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle))
Linkagenotify surveillance center,trigger recording,trigger capture,audible warning,Upload to memory card

General
Power12 V, 1.5 A, max. 18 W
MaterialPlastic
DimensionØ110.9 mm × 145.4 mm (Ø4.37″ × 5.72″)
Package Dimension322 mm × 197 mm × 210 mm (12.68″ × 7.76″ × 8.27″)
Approx. 1560 g (3.44 lb.)
With Package WeightApprox. 2180 g (4.81 lb.)
Startup and Operating Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
General FunctionMirror,flash log
Storage Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 70% or less (non-condensing)
Flashing LightNA

Battery
Battery TypeLithium
Capacity9000 mAh
Max. Charging Voltage8.4 V
Battery Voltage6 V to 8.4 V
Operating Temperature
Charging: 0 °C to 45 °C (32 °F to 113 °F)
Discharging: -20 °C to 50 °C (-4 °F to 122 °F)
Cycle LifetimeCap(800th) ≥ 80%
Battery WeightApprox. 170 g (0.37 lb.)

Approval
RFEN IEC 62311:2020, ETSI EN 301 489-17 V3.3.1, ETSI EN 301 908-1 V15.2.1, ETSI EN 301 489-1 V2.2.3, ETSI EN 301 908-13 V13.2.1
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006

Solar Power
Solar Panel TypeMonocrystalline silicon solar panel
Power Consumption8 W
Solar Panel Dimensions & Weight
Dimensions: 263.8 mm × 171.7 mm × 18.5 mm (10.39″ × 6.76\» × 0.73\»)
Weight: 450 g (0.99 lb.)
Working Temperature-20 °C to 60 °C (-4 °F to 140 °F)
ProtectionIP65
